HTTPS Anomaly Detection Module

This document describes how the anomaly_detection_https module detects anomalies from TLS/HTTPS traffic in Slips.

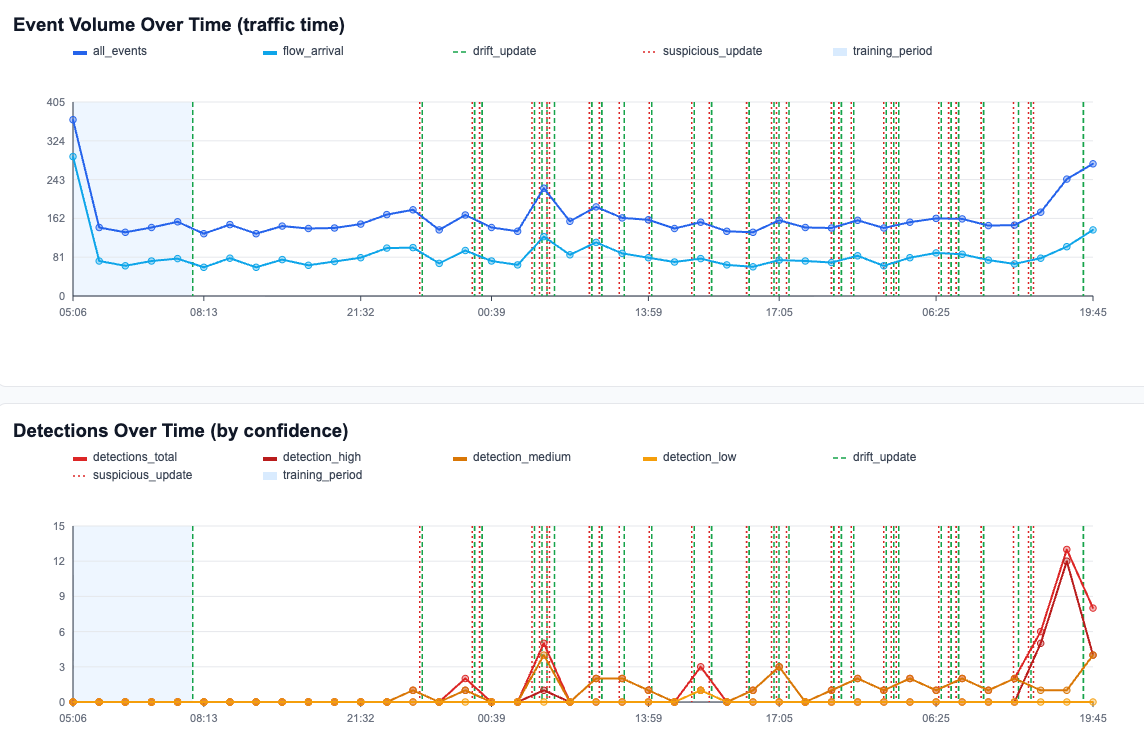

HTTPS anomaly detection example

Goal

Detect unusual HTTPS behavior per host, using:

  • Hourly behavior changes (volume and novelty patterns).

  • Flow-level deviations (for known servers).

  • Adaptive baselines that update over time, with poisoning resistance.

Input data used

The module subscribes to SSL/TLS events and reads related connection metadata from DB for the same UID.

Main fields used:

  • SSL: uid, server_name (SNI), ja3, ja3s, dport, sport

  • Conn (correlated): destination IP, total bytes, timing info

Traffic-time logic

All detection windows are based on traffic timestamps (packet/log time), not wall clock time.

This keeps behavior consistent for:

  • live interface capture,

  • live Zeek folder input,

  • offline PCAP,

  • offline Zeek logs.

Features

The module computes per-host hourly features:

  • ssl_flows: number of SSL flows in the hour.

  • unique_servers: number of distinct destination servers.

  • new_servers: number of servers not seen before for that host.

  • ja3_changes: number of new JA3 variants seen per server in the hour.

  • known_server_avg_bytes: mean bytes for flows to already-known servers.

Flow-level feature:

  • bytes_to_known_server: per-server bytes deviation on each flow.

Baseline and training

Each host has independent models.

Training phase (training_hours > 0)

For the first configured benign hours, the module does fit-only (Welford online moments):

  • no detection decisions are emitted from hourly z-score rules before training ends,

  • baseline mean/variance are learned strongly from this period.

Training fit strength is configurable with training_alpha:

Training fit technique is selected by training_fit_method:

  • training_fit_method = welford -> Welford benign fit.

  • training_fit_method = ewma -> EWMA-style training adaptation.

When training_fit_method = ewma, training_alpha controls strength:

  • higher training_alpha = faster adaptation,

  • lower training_alpha = slower adaptation.

No explicit training (training_hours = 0)

Detection starts immediately using online adaptation.

Special fallback only for ja3_changes:

  • if hourly ja3_changes < ja3_min_variants_per_server, that hourly signal is ignored until enough activity exists.

Scoring

Each modeled feature uses robust scoring in three explicit steps:

  1. Transform heavy-tail signals: y = log(1 + x) (log1p) for non-negative count/bytes features.

  2. Estimate robust center/scale on recent transformed values:

    • m = median(y)

    • MAD = median(|y - m|)

    • sigma_robust = max(1.4826 * MAD, min_std_floor)

  3. Score deviation:

    • z_robust = |y_t - m| / sigma_robust

Why this is used:

  • HTTPS counts and byte volumes are typically right-skewed and heavy-tailed,

  • mean/std-only scoring overreacts to bursts and underreacts after outliers,

  • log1p + median/MAD is more stable under non-Gaussian traffic.

Thresholds:

  • empirical thresholds calibrated from benign training when training_hours > 0,

  • otherwise defaults (hourly_zscore_threshold, flow_zscore_threshold).

Calibration rule:

  • per signal, collect robust z-scores on confirmed benign training data,

  • set threshold to high benign quantile (empirical_threshold_quantile, default 0.995),

  • fallback to defaults if training data is insufficient.

Adaptation states

After each hour closes, the module chooses model update mode.

Update event semantics:

  • training_fit: initial benign baseline fit while trained_hours < training_hours; uses training fit method (Welford-style), not EWMA alpha.

  • baseline_update: normal post-training adaptation; uses EWMA with baseline_alpha. In ADWIN mode, this is used when ADWIN does not signal drift.

  • drift_update: post-training drift adaptation; uses EWMA with drift_alpha. In ADWIN mode, this is used only after ADWIN drift signal and small/drift-like classification.

  • suspicious_update: post-training conservative adaptation; uses EWMA with suspicious_alpha. In ADWIN mode, this is used only after ADWIN drift signal and suspicious classification.

When use_adwin_drift=false:

  1. training_fit
    During benign training: Welford fit (no EWMA alpha).

  2. drift_update
    If anomaly score is small (hourly_score <= adaptation_score_threshold) and flow anomaly count is small (<= max_small_flow_anomalies), update with drift_alpha.

  3. suspicious_update
    Otherwise update with suspicious_alpha (much smaller), to limit poisoning.

For normal non-anomalous periods outside training, per-feature EWMA uses baseline_alpha.

ADWIN drift trigger (use_adwin_drift=true)

If use_adwin_drift=true and river is installed, ADWIN is the only drift trigger in both paths:

  • Hourly path: ADWIN receives each raw hourly feature stream.

  • Flow path: ADWIN receives each raw per-flow signal stream.

  • ADWIN drift detected -> classify as drift_update or suspicious_update using existing thresholds.

  • No ADWIN drift -> use baseline_update (baseline_alpha), even if anomalies exist.

  • During benign training, ADWIN is still warmed with benign scores to reduce cold-start noise after training.

Why raw signals:

  • drift is a distribution change in the observed variables, so ADWIN tracks the raw feature streams directly,

  • z-scores are still used for anomaly magnitude and evidence reasons, but not as the primary drift input.

Performance note:

  • hourly ADWIN cost scales with hourly feature count,

  • flow ADWIN cost scales with per-flow signal count,

  • both are constant-time scalar updates and usually lightweight.

Current tuned defaults for faster ADWIN reaction:

  • adwin_delta: 0.01

  • adwin_clock: 1

  • adwin_grace_period: 5

  • adwin_min_window_length: 5

New server vs JA3 behavior

  • new_servers is modeled as an hourly statistical feature and adapted over time.

  • new_server can also appear as a direct flow-level novelty reason.

  • ja3_changes is handled statistically at hourly level (with fallback gate only when training is zero).

  • new_ja3s can appear as direct flow-level novelty reason.

Confidence and threat level

Each detection computes confidence score [0,1] from multiple factors:

  • anomaly severity,

  • persistence in recent history,

  • baseline quality,

  • multi-signal agreement.

Mapped levels:

  • low / medium / high confidence

Threat level used in evidence:

  • low for low or medium confidence

  • medium for high confidence

Evidence format

Evidence description is human-readable and concise:

HTTPS anomaly: type=<type>; confidence=<level> (<score>); reason=<reason>; value=<value>; why=<explanation>.

Examples of reasons:

  • New Server

  • New JA3S

  • Bytes to Known Server

  • Hourly feature deviations (e.g., New Servers Count, JA3 Changes)

Configuration keys

Section: anomaly_detection_https in config/slips.yaml.

Main keys:

  • training_hours

  • training_fit_method

  • training_alpha

  • hourly_zscore_threshold

  • flow_zscore_threshold

  • adaptation_score_threshold

  • baseline_alpha

  • drift_alpha

  • suspicious_alpha

  • min_baseline_points

  • max_small_flow_anomalies

  • ja3_min_variants_per_server

  • use_adwin_drift

  • adwin_delta

  • adwin_clock

  • adwin_grace_period

  • adwin_min_window_length

  • empirical_threshold_quantile

  • log_verbosity

Defaults (from parser/config):

  • training_alpha: 1.0

  • training_fit_method: welford

  • use_adwin_drift: true

  • adwin_delta: 0.01

  • adwin_clock: 1

  • adwin_grace_period: 5

  • adwin_min_window_length: 5

Reference:

Operational logs

The module logs key events such as:

  • flow arrivals,

  • hour close and computed features,

  • training fit updates,

  • drift updates,

  • suspicious updates,

  • detections and emitted evidence.
